Intel QM77 Multi Touch Screen PC Industrial Capacitive With PCIE 2Mpcie 4 RJ45 Ports

Name: Intel QM77 Multi Touch Screen PC Industrial Capacitive With PCIE 2Mpcie 4 RJ45 Ports
Brand: AXNEW
Price: 650 USD

China Intel QM77 Multi Touch Screen PC Industrial Capacitive With PCIE 2Mpcie 4 RJ45 Ports wholesale

Brand Name : AXNEW

Model Number : AXD-15PPC-V8A

Certification : CE.ROHS

Place of Origin : Shenzhen China

MOQ : 5 Pieces

Price : US$650-US$1000/pcs

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 500 pieces/month

Delivery Time : 10 -20 working days

Packaging Details : 5 Pcs /Carton with firm foam

Brightness : 500cd/m^2

Pixel : 1024X768

Screen Size : 15inch

Processor : I5 QM77 I/O Controller

Feature : high speed/passive cooled/Industrial grade

Touch screen type : 10 points Capacitive touch

RAM : 8G

SSD : 64G;128G;256G etc

Touch Type : Projected capacitive touch with eeti chipset

Contact Now

Intel QM77 Industrial Capacitive Multi Touch Panel PC with PCIE 2Mpcie 4 RJ45 ports

Panel PC information
Model Number	AXD-15PPC-V8A
Model Number	15’’ Industrial panel Touch pc
Case/Bezel Color	Black
TFT Type	Industrial LCD with LED backlight
Aspect ratio	4:3
Useful Screen Area	304.8×228.6mm
Touch Panel	Industrial projected capacitive touch with eeti chipset
Touch response time	10ms (typical)
Touch PC Dimensions	376.1x 300.0 x59.0 mm
Optimal (native) Resolution	1024x768
LCD panel Pixel pitch	0.294 x 0.294 mm
LCD panel Colors	16.2 million
LCD panel Brightness	500 cd/m2
LCD panel Response Time	8ms
Contrast Ratio	700:1
Viewing Angle ( Wide )	IPS type
Horizontal (left/right)	±88° or 176° total
Vertical (up/down)	88°(up), 88°(down) or 176° total
Output Interface	DC1;HDMI1;Audio2;RS232(COM)2;etc
Input Interface	USB*4.can extend
Net	Internet 2xLAN Intel 82573L ,could be 4 LAN
Extension Ports	1xPCIe, 2Mini pcie
Watch Dog Technology	Support
Power Specification	External AC to DC power brick
	pc input: +12VDC ±5%,3.0 A; 24V DC input with 3 pin connector (screws)
	Power dissipation: 36W max
ECM (Embed Computer Module)	Intel® Dual Core QM77 Chipset with I5 3210(3.1 GHz ) SSD: 64G ;RAm:8G(DDR3,max8G); Operation System:Win10/8/7/xp;Linux
Temperature	Operating: -10°C to 60°C ;Storage -20°C to 80°C
Humidity (non condensing)	Operating: 20%-90%; Storage: 10%-95%
Shipping Carton Dimensions	one piece/ per carton
Weight (approx.)	Actual: 5kg ;Shipping: 7 kg
Dimensions
Holes fixings	Vesa mounting 100x100; fixing button
Mechanical dimensions	376.1mmx 300.0mmx59.0mm
Drawings	Please contact us for details

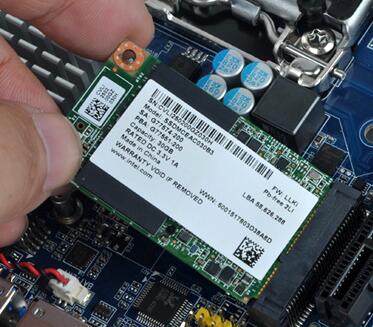

Mainboard's connectors:

Intel QM77 Multi Touch Screen PC Industrial Capacitive With PCIE 2Mpcie 4 RJ45 Ports

Our testings:

Intel QM77 Multi Touch Screen PC Industrial Capacitive With PCIE 2Mpcie 4 RJ45 Ports
